| Brand Name : | OHO |
| Model Number : | HS-SDI101 |
| Certification : | CE ROHS |
| Price : | 25-28usd/pc |
| Payment Terms : | Western Union, T/T |
| Supply Ability : | 50000/week |
The Mini 3G SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.
| Item | for room mini hidden cctv camera |
| Power Input | DC 5V-18V |
| Power Consumption | 5W |
| SDI Input | BNC(SDI/3G-SDI/HD-SDI) |
| HDMI Output | HDMI A-Type Female ports |
| SDI Transmission Rates | 2.970 Gbit/s and 2.970/1.001 Gbit/s |
| Resolution Supported | 1080p@50Hz / 1080p@60Hz / 1080p@24Hz 3D 1080i@50Hz / 1080i@60Hz 720p@50Hz / 720p@60Hz / 720p@50Hz 3D / 720p@60Hz 3D 576i@50Hz / 576p@50Hz / 480i@50Hz / 480p@60Hz |
| ESD Protection | ±8kV (air-gap discharge) ±4kV (contact discharge) |
| Operating Temperature | 0°C ~ 60°C |
| Humidity | 20% ~ 90% RH(Non-condensing) |

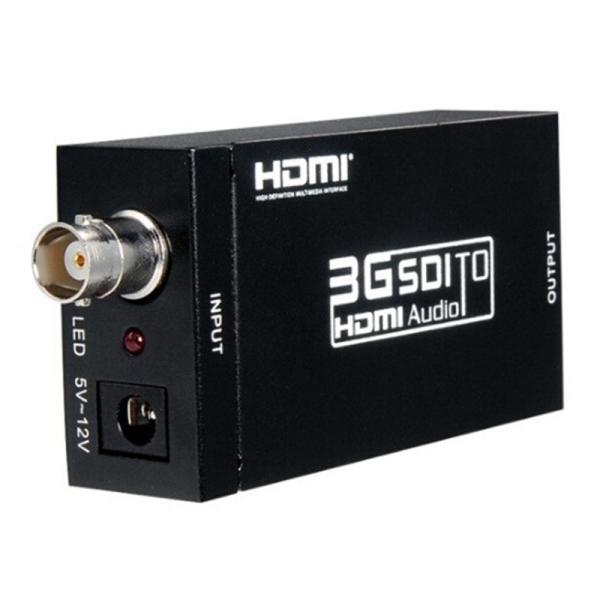

SDI to HDMI converter for room mini hidden cctv camera
1. Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
2. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 KHz Audio
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
5. Connect with other units to extend your signal over long distances.
|
|
